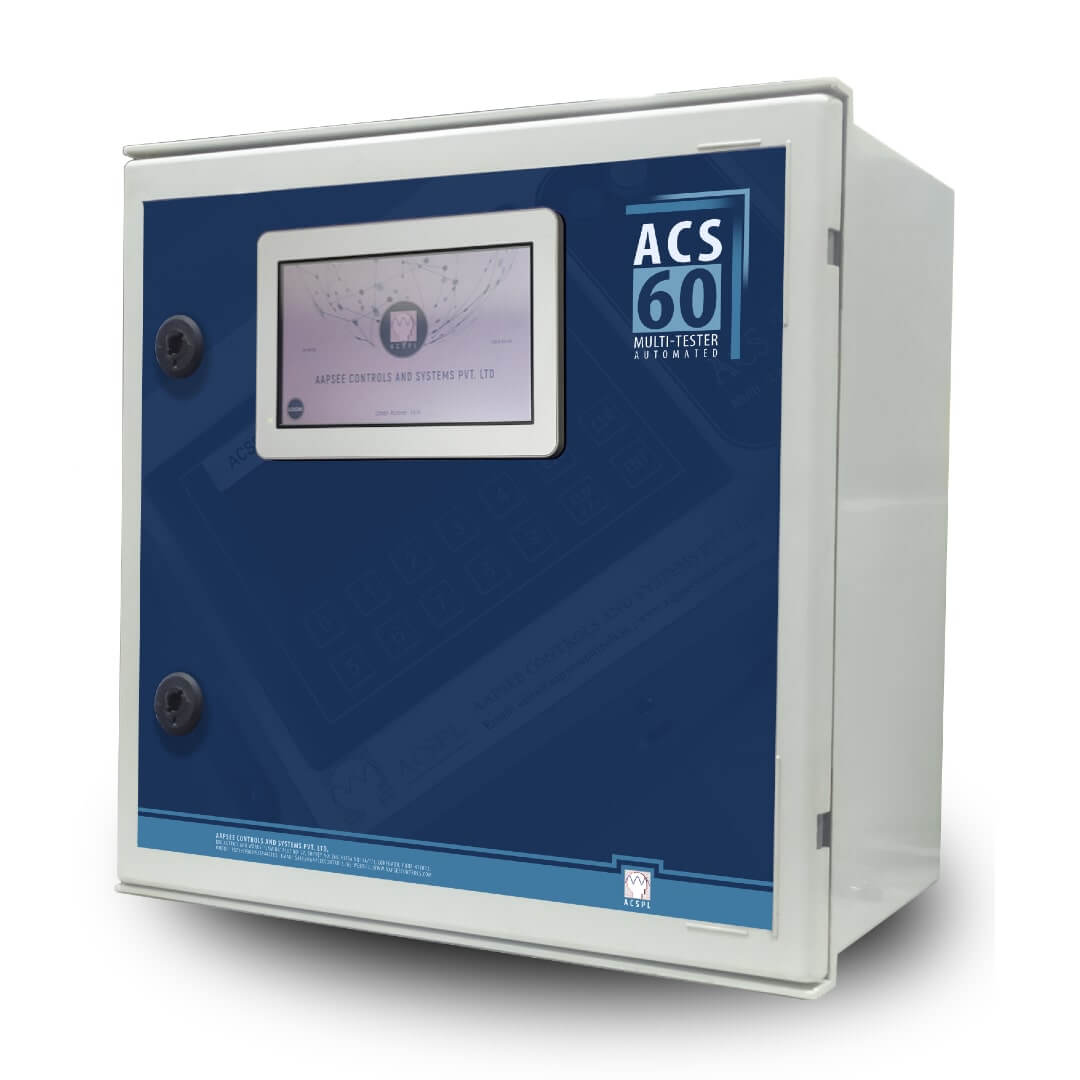

ACS 60 (Q)
Quad (Four) Part Leak Tester
| Test Methods: | |
| Mass Flow, | Choke-Mass Flow |
| Missing Part – Mass Flow | Choke Flow |
| Pressure/ Vacuum Decay | Diff Pr/Vac Decay |
| Accumulation Leak | Head Space |
| Masking Operation | Sequence Test |
| Test Pressure: | (-1 BarG to 200 BarG) |
| Pr Drop: | 0.0001 to 10 Kpa |
| Leak Flow: | 0.01 SCCM to 1500 SLPM |
| Graphic Display: | Pressure & Leak/ Pr Drop; |
| Programs: | “n” No of Recipes |
| Test Data: | Date Wise, “.csv” form |
| Digital I/Os: | |
| Inputs: | Dual Start, Reset PC, BPC, Parts Presence….. |
| Outputs: | Good, Bad, Cyl On…….. |
| General: | ||
| Split Screens | Batch Control | 2GB Test Data |
| RS 485 | Ethernet | USB Ports |
| 90 – 260 VAC-50Hz | 1KW | 5 μ I/p Filter |
